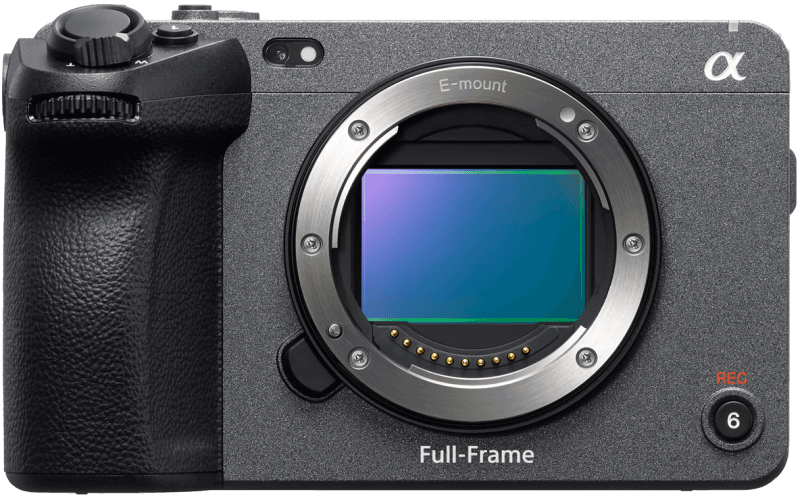

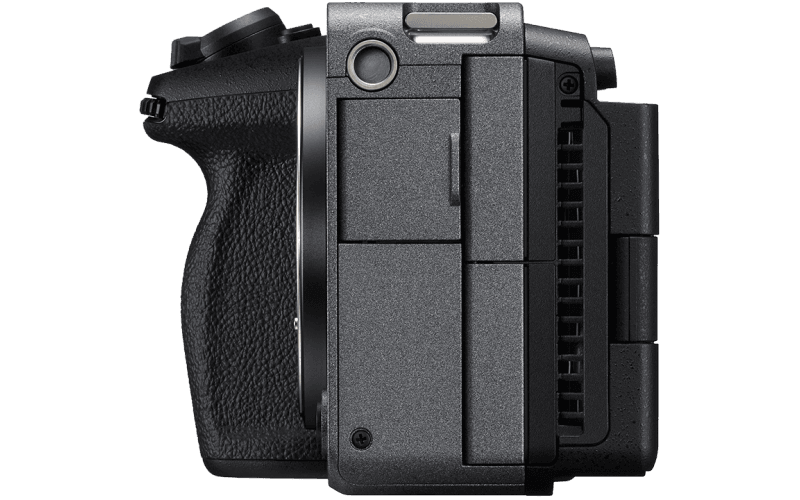

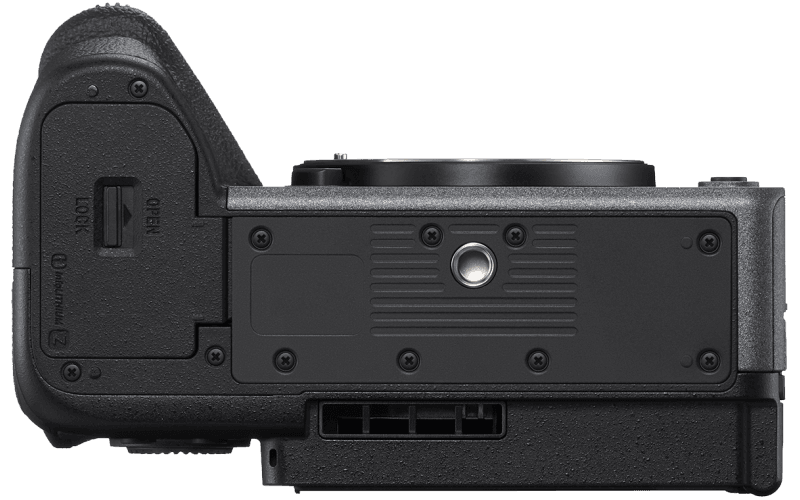

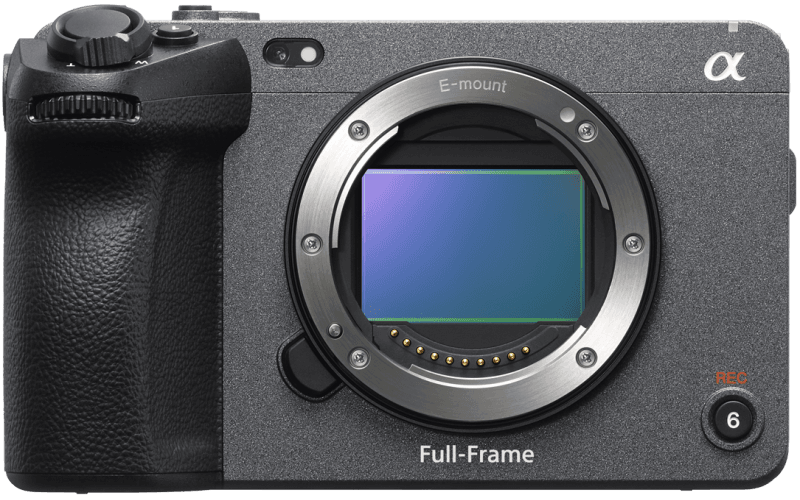

FX3 Cinema Line Full-frame camera
ILMEFX3AB.CEC
WAS £3,899.00 £3,279.00
Buy
Collect

FX3 Cinema Line Full-frame camera

Cinema Line performance made for passionate content creators

ILMEFX3AB.CEC

With its full-frame sensor, the FX3 Cinema Line camera offers high sensitivity and wide dynamic range—for powerful expressive possibilities in an amazingly compact design. With enhanced mobility for easy hand-held shooting, alongside pro operability, it’s the ideal creative tool to capture a cinematic vision anywhere.

  • Full-frame Exmor R™ CMOS sensor and powerful BIONZ XR™ image processor
  • High sensitivity and wide dynamic range
  • Enhanced mobility with compact, lightweight body
  • EXTENDED RECORDING WITHOUT LIMITS Innovative cooling system and built-in fan enable long-duration 4K recording without overheating. Capture extended interviews or events with confidence.
Delivery Available View delivery options...

FEATURES

Image sensor with blazingly fast readout speed


The back-illuminated full-frame Exmor R™ CMOS sensor boasts a blazingly fast data readout speed along with high sensitivity and wide dynamic range. An advanced colour filter array boosts colour reproduction accuracy, while focal plane phase-detection AF enables solid autofocus stability and excellent precision, all of which contribute to outstanding image quality.

High performance image-processing engine


The BIONZ XR™ image-processing engine is designed for high speed, minimising latency while providing impressive real-time processing capabilities. The engine performs real-time processing of AF, image recognition and image quality adjustments, while also handling data transfer, user interface and other camera operations.

High sensitivity, wide dynamic range


The full-frame sensor enables high sensitivity with low noise throughout the camera's range by optimising the sensor’s output. Capture clear motion even in low light conditions with an impressive ISO expanded range up to 409600. It has an extended dynamic range of 15+ stops[FN|When shooting S-Log3, Sony tests.], without blown highlights. Together, the camera's high sensitivity and wide dynamic range expand your flexibility in post-production.

4K High Frame Rate 120fps recording


You can record full-frame 4K (QFHD) at up to 120fps[FN|With 10% image crop.] with autofocus thanks to the high-speed readout capabilities of the image sensor and the powerful BIONZ XR processor. Even at high frame rates, 4K (QFHD) images are captured using full-pixel readout without binning, for clear post-produced slow motion (up to 5x slower than real time)[FN|Post-production editing or S&Q mode recording required (sound recording not available).]. The high-precision AF even allows beautiful full-frame bokeh to be achieved during slow motion shooting.

Acclaimed cinematic colour with S-Cinetone™


The inclusion of Sony’s acclaimed S-Cinetone look, inherited from the development of the FX9, allows cinematic colour to be achieved directly in-camera. S-Cinetone is optimised for natural skin tones and mid-range colours, with gentle highlight roll-off, for impressive subject depiction even without post production grading.  [1] Standard (Picture Profile OFF)  [2] S-Cinetone (Picture Profile 11)

All-Intra internal recording


In addition to Long-GOP inter-frame compression, internal intra-frame (All-Intra) recording is supported[FN|For All-Intra, the file format should be set to XAVC S-I 4K or XAVC S-I HD.]. XAVC S-I recording compresses each frame independently at a high bitrate, up to 600Mbps, so is ideal for capturing complex motion, and allowing maximum flexibility and playback performance during post-production.  [1] All-Intra (All-I)  [2] Long-GOP  [3] Group of Pictures

HEVC codec with high compression efficiency


XAVC HS format recording, using the MPEG-H HEVC/H.265 codec, roughly doubles the compression efficiency. Compared to a normal 4K XAVC S format, XAVC HS allows for detailed 10-bit video with 4:2:2 colour sampling at comparable or lower data rates, delivering even better image quality as well as manageable file sizes[FN|XAVC HS compatible editing software, Catalyst Browse or Catalyst Prepare is required.].

DCI 4K recording in true 24p[FN|At 24.00p, proxy recording is disabled. When 24.00p is selected or deselected, the camera will automatically restart.]


The FX3 allows you to shoot in a wide range of formats to suit your shooting needs. You can also select XAVC S-I DCI 4K (4096 x 2160) format which is often used in cinema shooting. And true 24p (24.00p) can be an option for recording frame rate when you selecting XAVC S-I DCI 4K.

New S-Log shooting modes for optimized image quality


Three modes are provided for recording with the S-Log3 gamma curve. Cine EI[FN|XAVC HS compatible editing software, Catalyst Browse or Catalyst Prepare is required.], used in Sony’s high-end Cinema Line models, offers wide latitude and the highest possible image quality. Eine EI Quick[FN|XAVC HS compatible editing software, Catalyst Browse or Catalyst Prepare is required.] simplifies setup by automatically switching the camera’s base ISO according to the selected Exposure Index (EI). And Flexible ISO provides the greatest flexibility for exposure settings. In addition, Sony’s s709, 709tone, and ITU709 has been added to the available LUT presets.

Proxy recording for more efficient editing workflow


Low bit-rate HD proxy files can be recorded simultaneously with higher bit-rate formats such as XAVC S-I 4K, and these smaller proxy files can then be used for editing and previewing prior to final production delivery. This reduces computer load and allows faster and more efficient workflows. Proxy files can be captured in either 10-bit XAVC HS (1920 x 1080) or 8-bit XAVC S (1280 x 720)[FN|Proxy recording is not available in the following conditions: (a) normal movie recording at a [Record Frame Rate] of 120p (100p) or higher; (b) S&Q movie recording at a [Record Frame Rate] of 120p (100p) or higher; (c) S&Q movies at a [Frame Rate] of 120 (100) fps or higher.].

Expand your vision with Creative Look


Looks emulate pro monitoring and post-production tools inside the camera. The Creative Look presets are available in-camera, and each of these can be used as is, or further customised using individual parameter settings such as hue, colour depth, brightness, contrast, and sharpness. Fine adjustment of preset looks can be made according to the user's preference, and you can also register your favourite settings as a custom look.

10-bit HLG picture profile


An HLG (Hybrid Log-Gamma) HDR picture profile, complete with the wide-gamut BT.2020 colour space, can be used for direct HDR (HLG) playback on compatible TVs. The result is true-to-life imagery close to what the naked eye can see, with detailed shadows and highlights, less blackout and less whiteout, all without the need for colour grading. In particular, 10-bit recordings reproduce a level of fine gradation and detail for extraordinary realism.  [1] High flexibility to fine-tune images as desired (colour grading required) [2] Instant high-quality image (colour grading not required)

Fast Hybrid AF for dependable focus during movie shooting


Fast Hybrid AF combines focal plane phase-detection AF with contrast-detection AF. This results in highly precise, smooth tracking of fast-moving subjects even over a wide range with a shallow depth of field. AF Transition Speed and AF Subject Shift Sensitivity parameters allow more flexible focus control, as demanded by professional users.

Fast, easy and reliable Real-time Tracking and Eye AF


Focus control is fast and intuitive, to ensure you have full creative control of the FX3’s powerful AF technology. Real-time Tracking greatly assists during solo shooting by analysing the subject's colour, patterns, and depth. When shooting people, Real-time Eye AF makes movie-making much easier, especially with gimbal-mounted shots and wherever you need to rely on AF.

De-squeeze display[FN|Available in log shooting modes.] for anamorphic lens


When shooting with anamorphic lenses, you can choose a de-squeeze ratio (1.3 x or 2.0 x) in the menu to display the movie with horizontal correction on the LCD monitor, according to the ratio of the attached anamorphic lens.

Selectable shutter angle and speed


Users can switch between displaying shutter speed, or shutter angle for fluid and familiar videography.

Compensation for focus breathing


With the breathing compensation function turned on, the camera allows you to shoot movies with more stable images when you used with compatible lenses[FN|Compatible lenses are listed at:https://support.d-imaging.sony.co.jp/support/ilc/breathing/en/ Angle of view and image quality may change slightly when this function is turned ON. Full compensation may not be possible with some lenses. This function is not available when shooting movies at 120p, when using the S&Q mode at 120p, or when shooting stills.]. The breathing metadata can also be recorded so that you can apply compensation with the latest Catalyst Browse/Prepare Plugin software during post-production.

Fast, easy touch focus control[FN|Presetting is required.]


Touch focus control allows you to precisely specify the point of focus simply by touching the LCD monitor. It's fast, easy, and intuitive to perform rack focusing through touch operation—ensuring you have full creative control of the FX3's powerful AF technology.

In-body optical image stabilisation for handheld shooting


Relying on a new high-precision stabilisation unit, gyro sensors, and optimised image stabilisation algorithms, the camera's Optical SteadyShot™ Active Mode provides precise optical image compensation, for outstanding results for 4K video recording[FN|Slight image crop in Active Mode. “Standard” setting recommended for focal lengths of 200mm or longer.] [FN|Active Mode is not available when recording at frame rates of 120 (100) fps or higher, including S&Q.], even while walking. With this unprecedented level of stabilisation it's possible to shoot with the camera only, taking advantage of the compact size and mobility.  [1] Track of camera shake [2] Standard [3] Active

XLR adaptor and digital input for quality audio

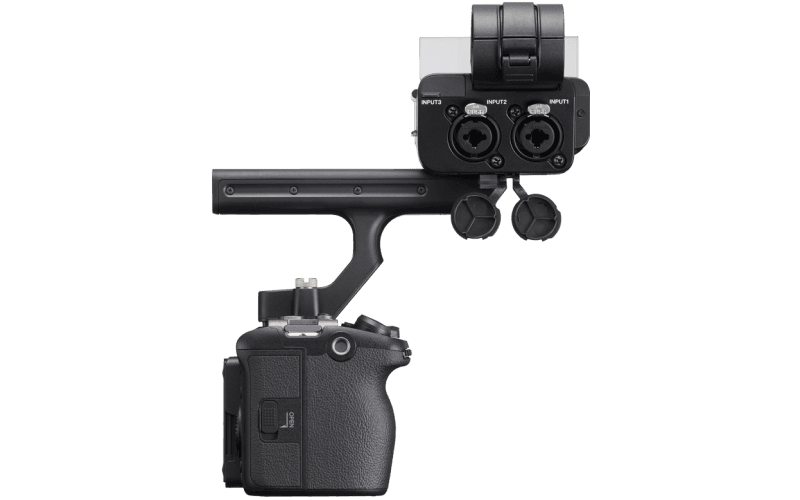

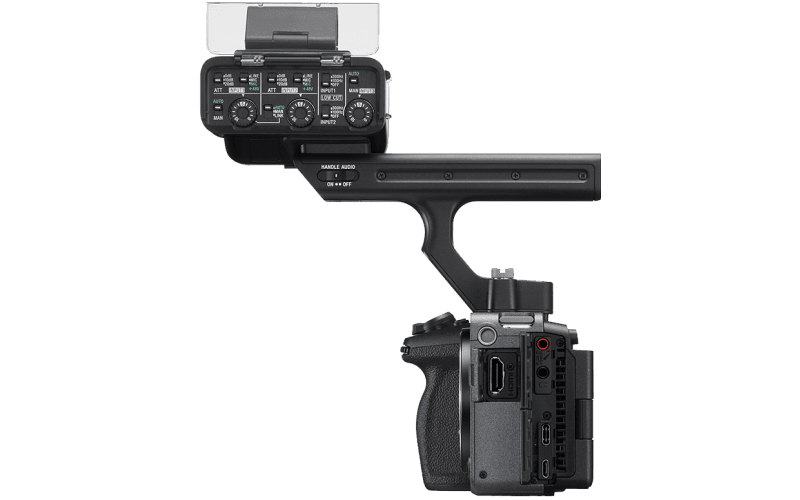

The handle of the FX3 includes two independent full-size XLR connectors (XLR/TRS combo) to connect external professional microphones through a digital audio interface via the Multi Interface (MI) Shoe. Three recording formats can be selected, including 24-bit 4-channel.

HDMI Type-A output and monitoring options


With a durable and versatile HDMI Type-A jack, it is possible to simultaneously output video to the camera's LCD monitor, an HDMI-connected external recording or monitoring device.

Uninterrupted 4K 60p[FN|The sound level from the fan depends on recording mode and operating environment.] recording


For uninterrupted 4K 60p[FN|The sound level from the fan depends on recording mode and operating environment.] recording, the FX3 features an innovative heat dissipation structure, including a unique Sony S (sigma) shaped graphite-alloy heatsink. A complete internal redesign optimised airflow and placement of heatsinks. When required, a silent[FN|Sony internal tests. USB power supply (USB-PD device, 9V/3A output), XAVC S-I (All-I), 4K 60p 10-bit 4:2:2, 77 °F (ambient, camera when recording started), Auto power: Off, Temperature: High, Cooling fan: Auto. The duration will vary depending on the shooting conditions. The maximum continuous recording time for a single movie shooting session is approximately 13 hours (a product specification limit).] cooling fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.[FN|This image is for illustrative purposes and represents the ILME-FX3A. For product appearance, please refer to the product cut.]

REC lamps and highlighting during video recording


There is one tally light on the front and one on the back, and an LED-illuminated REC button on top that works with the tally lights. In addition, by displaying a red frame on the monitor screen during video recording, even if the screen is difficult to see with a rig or gimbal attached, you can immediately confirm recording status. Light operation can be set on or off for specific applications.

Customisable buttons for professional movie creators


The innovative mirrorless design provides mobility alongside uncompromising professional operability. Frequently used controls are positioned on the top surface, and the many customisable keys and menus deliver streamlined workflows in the field. It’s designed for professional results, even when shooting requires one-handed control or challenging shooting angles and lens handling.

Various zoom operations tailor your expression


The zoom lever placed at the top of the grip allows operation of power zoom lenses. Additionally, our innovative Clear Image Zoom provides for practical angle of view options even with minimal equipment. Zoom speeds can also be adjusted to suit everything from quick documentary re-framing to purposeful cinematic zooms.

Cage-free accessory mounting

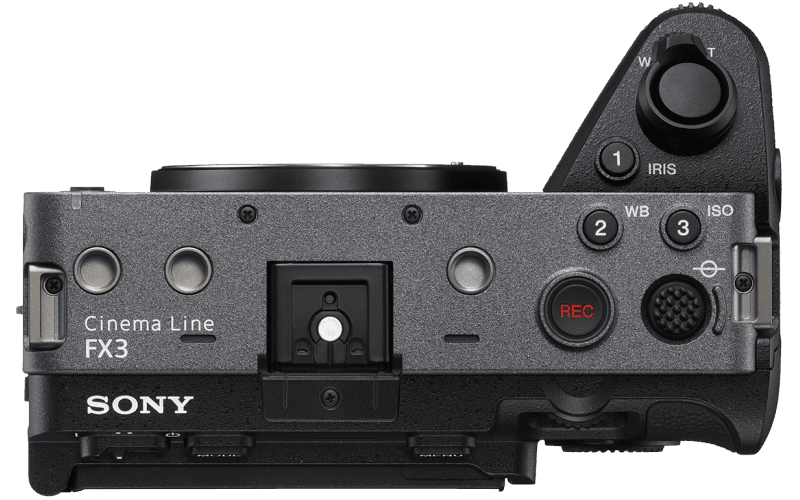

Five 1/4-20 UNC mounting screw holes allow stable attachment of accessories directly to the camera body, without the need for a cage. Three additional mounting holes are also available on the included XLR handle. The result is a system optimised for incredible mobility and hand-held shooting as well as quick setup for fast-moving productions.

Touch-driven menu with workflow-based navigation


Responding to requests from pro photographers and videographers, the menu structure has been designed to make moviemakers’ work more efficient. Menu tabs are on the left side of the display, while parameter groups and parameters related to the selected tab appear on the right. Up to three levels can be displayed together, making the menu structure more clearly visible. Touch-responsive menu operations enable fast, intuitive control.

Flexible camera positioning with vari-angle monitor

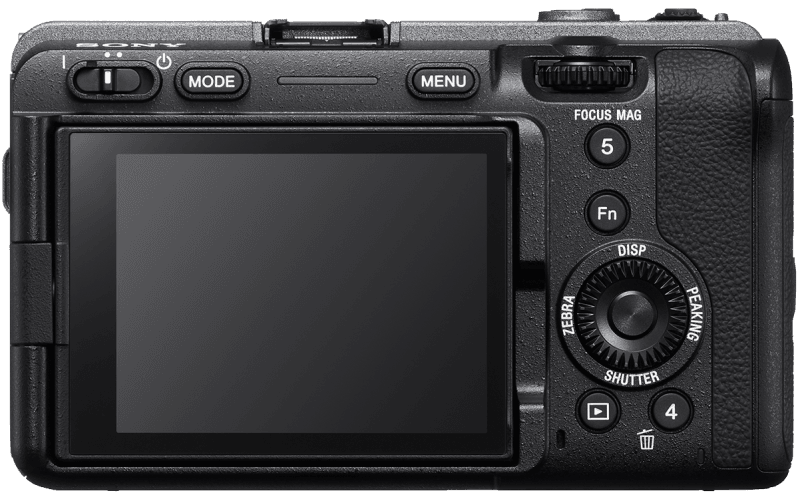

The FX3 is equipped with a horizontally opening vari-angle LCD monitor that is rotatable for precise framing or interesting angles, regardless of whether you are shooting movies hand-held or gimbal mounted. The screen can even be rotated for direct viewing by the subject or when shooting dramatic low angle shots. The 3.0-type, approximately 2.36 million-dot[FN|Approximate.] large touch panel LCD has high visibility and clarity.

Two CFexpress Type A-compatible media slots


The camera's two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes. CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bit rates. Dual slots enable either relay or simultaneous recording.

Reliable, durable, and lightweight construction


For high durability and mobility, the main camera chassis, top, front, and rear covers are constructed from lightweight and robust magnesium alloy, with the lens mount secured by six screws for stable attachment of heavy lenses. A filter in front of the image sensor oscillates at an ultrasonic frequency of 70,000 cycles per second to remove dust from the sensor surface.

Reliable durability and weather resistance[FN|The internal battery will not be charged while camera power is ON and the camera is in use.] in tough situations


In response to feedback from working professionals, sealing has been applied to all body seams and around the battery and media compartments, terminal covers and chassis joints. All routes for dust and moisture entry have been examined to ensure reliable operation in challenging environments.

Power for professional length


For extended shooting sessions, the FX3 is compatible with large-capacity NP-FZ100 batteries. USB-PD (Power Delivery) support also enables fast charging[FN|The internal battery will not be charged while camera power is ON and the camera is in use.] or continuous shooting when connected to a compatible USB Type C® power supply or portable powerbank battery[FN|Sony internal tests. USB power supply (USB-PD device, 9V/3A output), XAVC S-I (All-I), 4K 60p 10-bit 4:2:2, 77 °F (ambient, camera when recording started), Auto power: Off, Temperature: High, Cooling fan: Auto. The duration will vary depending on the shooting conditions. The maximum continuous recording time for a single movie shooting session is approximately 13 hours (a product specification limit).].

Flag clips for efficient post-production


For complex shoots and faster editing turnaround, users can flag clips as OK, NG, or KEEP from the menu or a Custom button[FN|Flags can be added to the MP4 format.]. Flags are visible in the thumbnail view and in Catalyst software, for rapid filtering and selection during editing.

Wireless monitoring and remote control


Connecting a smartphone or tablet to the camera with the Monitor & Control app enables wireless monitoring, high-precision exposure adjustment, and focus control on a larger screen.

Data communications to support on-site workflow


Wireless 5GHz[FN|5GHz communication may be restricted in some countries and regions.]/2.4GHz LAN connections are supported, as are 1000BASE-T Ethernet network connections via a USB-to-Ethernet adaptor cable connected to the camera's USB Type C® terminal supporting SuperSpeed USB 5Gbps (USB 3.2). Remote shooting can be controlled from a PC with Sony's Imaging Edge Desktop™ application, or from a mobile device with Imaging Edge Mobile™. Wired and wireless FTP transfer for data files as well as remote shooting capabilities support professional workflows during shoots.

Metadata to facilitate editing with Catalyst


Sony’s Catalyst Browse and Prepare software are ideal production partners for the FX3. The camera records five types of metadata: LUTs, image stabilization, breathing, camera rotation and Shot Marks. These can be useful when previewing and preparing to edit in Sony’s free Catalyst Browse or purchased Catalyst Prepare software.[FN|This image is for illustrative purposes and represents the ILME-FX3A. For product appearance, please refer to the product cut.]

Creators' Cloud platform


Creators' Cloud is a platform that supports creative work from shooting to production by combining Sony's advanced camera technology and the cloud. It's also a place for discovery and collaboration with other creators around the world. Explore web, mobile, and PC-based apps providing efficient solutions that integrate cameras with shooting and production apps and services.

Information on security updates


Where a Sony product contains software that is subject to updates, Sony may issue security updates and updates necessary for the proper functioning of the device.

SPECIFICATIONS

General
CAMERA TYPE
Interchangeable lens digital camera
LENS MOUNT
E-mount
Size & Weight
WEIGHT (MAIN UNIT ONLY) (approx.)
715 g (1 lb 9.3 oz) (with battery and memory card included), 630 g (1 lb 6.3 oz) (body only)
WEIGHT (INCLUDING SUPPLIED ACCESSORIES) (approx.)
1.015 kg (2 lb 3.8 oz) (with XLR Handle, battery pack, SD card)
DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.)
129.7 mm x 77.8 mm x 84.5 mm (5 1 / 8 x 3 1 / 8 x 3 3 / 8 inches) (body without protrusions)
Power
Power Consumption
[Movie] Approx. 7.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), [Still image] Approx. 3.5W (with FE 28-70mm F3.5-5.6 OSS lens attached)
BATTERY OPERATING TIME
Approx. 95 min (Actual recording, CIPA standard) , Approx. 135 min (Continuous recording, CIPA standard), Approx. 570 shots (still images, CIPA standard)
Operation
OPERATING TEMPERATURE
0°C to 40°C, 32°F to 104°F
STORAGE TEMPERATURE
-20°C to +55°C, -4°F to +131°F
Recording Format(Video)
XAVC HS
[XAVC HS 4K] XAVC HS 4K 59.94p / 50p 200Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p / 50p 150Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p / 50p / 23.98p 100Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p / 50p 75Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p / 50p 45Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 100Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 30Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p / 100p 280Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p / 100p 200Mbps 4:2:0 10bit MPEG-H HEVC / H.265
XAVC S
[XAVC S 4K] XAVC S 4K 59.94p / 50p 200Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 59.94p / 50p 150Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p / 25p 140Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 23.98p 100Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p / 25p / 23.98p 100Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p / 25p / 23.98p 60Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p / 100p 280Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p / 100p 200Mbps 4:2:0 8bit MPEG-4 AVC / H.264, [XAVC S HD] XAVC S HD 59.94p / 50p / 29.97p / 25p / 23.98p 50Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S HD 59.94p / 50p / 29.97p / 25p / 23.98p 50Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 59.94p / 50p 25Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC HD 29.97p / 25p 16Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p / 100p 100Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p / 100p 60Mbps 4:2:0 8bit MPEG-4 AVC / H.264,
XAVC S-I
[XAVC S-I 4K] XAVC S-I 4K 59.94p 600Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 50p 500Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 29.97p 300Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 25p 250Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 23.98p 240Mbps 4:2:2 10bit MPEG-4 AVC / H.264, [XAVC S-I HD] XAVC S-I HD 59.94p 222Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 50p 185Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 29.97p 111Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 25p 93Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 23.98p 89Mbps 4:2:2 10bit MPEG-4 AVC / H.264,
XAVC S-I DCI
[XAVC S-I DCI 4K] XAVC S-I DCI 4K 59.94p 600 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 50p 500 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 29.97p 300 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 25p 250 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 23.98p / 24.00p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264
Recording Format (Audio)
RECORDING FORMAT (AUDIO)
LPCM 2ch (48kHz 16bit), LPCM 2ch (48kHz 24bit), LPCM 4ch (48kHz 24bit), MPEG-4 AAC-LC 2ch
Recording Frame Rate
XAVC HS
[XAVC HS 4K] 3840x2160 / 119.88p, 100p, 59.94p, 50p, 23.98p
XAVC S
[XAVC S 4K] 3840x2160 / 119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S HD] 1920x1080 / 59.94p, 50p, 29.97p, 25p, 23.98p
XAVC S-I
[XAVC S-I 4K] 3840x2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920x1080 / 59.94p, 50p, 29.97p, 25p, 23.98p
XAVC S-I DCI
[XAVC S-I DCI 4K] 4096x2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 24.00p
Slow & Quick Motion
XAVC HS
XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps
XAVC S
XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps
XAVC S-I
XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps
XAVC S-I DCI
XAVC S-I DCI 4K: 24.00p: 1fps, 2fps, 3fps, 6fps, 12fps, 24fps, 48fps, [NTSC mode] 59.94p / 29.97p / 23.98p: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, [PAL mode] 50p / 25p: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps
Recording/Playback Time
XAVC HS
[XAVC HS 4K] 59.94p / 50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p / 50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80GB) Approx. 50 minutes, 59.94p / 50p 100M When using CEA-G160T (160 GB) Approx. 150 minutes, When using CEA-G80T (80GB) Approx. 75 minutes, 59.94p / 50p 75M When using CEA-G160T (160 GB) Approx. 190 minutes, When using CEA-G80T (80GB) Approx. 95 minutes, 59.94p / 50p 45M When using CEA-G160T (160 GB) Approx. 290 minutes, When using CEA-G80T (80GB) Approx. 140 minutes
XAVC S
[XAVC S 4K] 59.94p / 50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p / 50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80GB) Approx. 50 minutes, [XAVC S HD] 59.94p / 50p 50M When using CEA-G160T (160 GB) Approx. 270 minutes, When using CEA-G80T (80GB) Approx. 130 minutes, 59.94p / 50p 25M When using CEA-G160T (160 GB) Approx. 430 minutes, When using CEA-G80T (80GB) Approx. 210 minutes
XAVC S-I
[XAVC S-I 4K] XAVC S-I 4K 59.94p / 50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p / 50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80GB) Approx. 35 minutes
XAVC S-I DCI
[XAVC S-I DCI 4K] 59.94p / 50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80GB) Approx. 10 minutes
PROXY AUDIO
XAVC Proxy: AAC-LC, 128kbps, 2 channels
PROXY VIDEO
[XAVC HS HD] MPEG-H HEVC / H.265 1920 x 1080 4:2:0 10bit 16Mbps, 1920 x 1080 4:2:0 10bit 9Mbps, [XAVC S HD]MPEG-4 AVC / H.264 1280 x 720 4:2:0 8bit 6Mbps
RAW Output
RAW Output
HDMI: 4264 x 2408 (59.94p / 50p / 29.97p / 25p / 23.98p), 16bit
Other Video Function
VIDEO FUNCTIONS
Audio Level Display, Audio Rec Level, TC / UB, Creative Look, Gamma Display Assist, PAL / NTSC Selector
Camera Section
SENSOR TYPE
35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor
Pixels
Approx. 10.3 megapixels (effective) for movies, Approx. 12.1 megapixels (effective) for Still images, Approx. 12.9 megapixels (total)
Sensitivity
[Movie] ISO 80-102400 equivalent (Expandable to ISO 409600), AUTO (ISO 80-12800, selectable lower limit and upper limit), [Still image] ISO 80-102400 (Expandable to ISO 40- 409600), AUTO (ISO 80-12800, selectable lower limit and upper limit)
Shutter Speed
Movie: 1 / 8000 to 1 / 4 (1 / 3 steps), up to 1 / 60 in AUTO mode (up to 1 / 30 in Auto slow shutter mode) Still image: 1 / 8000 to 30 sec, Bulb
White Balance
White Balance Modes
Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900K) & color filter / Custom
Gamma
GAMMA CURVE
Off / PP1-PP6, PP10-PP11, Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset / PPLUT1-4, Parameters: Basic Look
Latitude
LATITUDE
15+ stop (S-Log3)
Focus System
Type
Fast Hybrid AF (phase-detection AF / contrast-detection AF)
FOCUS POINT
[Movie] 627 points, [Still image] 35mm full frame: 759 points (phase-detection AF)
SENSITIVITY RANGE
EV-6 to EV20 (ISO100 equivalent with F2.0 lens attached)
FOCUS MODE
[Movie] AF-C, MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus
FOCUS AREA
[Movie] Wide / Zone / Center Fix / Spot / Expanded Spot [Still image] Wide / Zone / Center Fix / Spot / Expanded Spot / Tracking
OTHER FOCUS FEATURES
Eye AF ([Movie] Human (Right / Left Eye Select, [Still image] Human (Right / Left Eye Select) / Animal), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still] AF Track Sens., Face detection (Face Priority in AF), Face Priority in Multi Metering, Regist. Faces Priority, Focus Magnifier (35mm full frame: 2.1x / 4.1x APS-C: 1.5x / 3.0x)
Exposure Control
METERING SENSITIVITY
EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached)
EXPOSURE MODES
[Movie] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode, [Still images] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)
Recording (Still image)
RECORDING FORMAT
JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 5.0 format compliant)
IMAGE SIZE
Image size [3:2] 35mm full frame L:12M, M:5.1M, S:3.0M, APS-C L:5.1M, M:3.0M, S:1.3M, Image size [4:3] 35mm full frame L:11M, M:4.6M, S:2.7M, APS-C L:4.6M, M:2.7M, S:1.1M Image size, [16:9] 35mm full frame L:10M, M:4.3M, S:2.6M, APS-C L:4.3M, M:2.6M, S:1.1M, Image size [1:1] 35mm full frame L:8M, M:3.4M, S:2.0M, APS-C L:3.4M, M:2.0M, S:0.8M
Playback
Playback Functions
Index view, Folder selection (Date / Still / Movie), Photo capture, 4Ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills)
Interface
TC INPUT/TC OUTPUT
Multi / Micro USB, TC IN
AUDIO INPUT
3.5 mm Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR / TRS-type 3-pin(female) (x2), line / mic / mic +48V selectable, Mic Reference -40 to -60 dBu / [INPUT3] 3.5 mm Stereo minijack)
USB
USB Type-C
HEADPHONE OUTPUT
Yes (3.5 mm Stereo minijack)
SPEAKER OUTPUT
Built-in, monaural
HDMI OUTPUT
HDMI jack (Type-A), YCbCr 4:2:2 10bit / RGB 8bit
Multi Interface Shoe
With Digital Audio Interface
Bluetooth
Bluetooth Standard Ver. 5.0 (2.4GHz band))
Media
MEDIA TYPE
CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy
Monitoring
LCD
7.5cm (3.0-type) type, approx. 2.36M dots, touch panel, Opening Angle:Approx. 176 deg., Rotation Angle:Approx. 270 deg.
Built-in Microphone
Built-in Microphone
Built-in, stereo
File System
FILE SYSTEM
FAT12, 16, 32, exFAT
Zoom
ZOOM FUNCTION
Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] Approx. 2x ), Digital zoom ([Movie] 35mm full frame: approx. 4x, APS-C: approx. 4x, [Still image] 35mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x, APS-C: L: approx. 4x, M:approx. 5.2x, S: approx. 8x), Smart zoom ([Still image] 35mm full frame: M: approx. 1.5x, S: approx. 2x, APS-C: M:approx. 1.3x, S: approx. 2x)
Still image function
SHUTTER
Mechanical shutter / Electronic shutter
DRIVE MODES
Single Shooting, Continuous shooting (Hi+ / Hi / Mid / Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket
CONTINUOUS SHOOTING SPEED
Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps
NOISE REDUCTION
Long exposure NR: On / Off, available at shutter speeds longer than 1 sec., High ISO NR: Normal / Low / Off
FLASH CONTROL
Sony a System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe, Flash sync speed 1 / 250 sec.
OTHER STILL IMAGE FUNCTION
Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot
Image Stabilization
Type
Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)
MODE
[Movie] Active / Standard / Off, [Still image] On / Off
COMPENSATION EFFECT (STILL IMAGES)
5.5 stops (based on CIPA standard. Pitch / yaw shake only. With Planar T* FE 50mm F1.4 ZA lens mounted. Long exposure NR off.)
Custom function
CUSTOM FUNCTION
Custom key settings, My Menu, My Dial Settings, Reg. Custom Shoot Set
Lens Compensation
LENS COMPENSATION
Shading, Chromatic Aberration, Distortion, Breathing (Movie)
Wi-Fi/NFC
Supported Format
IEEE 802.11a / b / g / n / ac
Frequency Band
2.4GHz band / 5GHz band
Security
WEP / WPA-PSK / WPA2-PSK
NFC
?
FTP Transfer
FTP Transfer
Wired LAN (USB-LAN), USB Tethering, Wi-Fi
Supplied accessories
Supplied Accessories
Rechargeable Battery NP-FZ100; Battery Charger BC-ZD1; XLR handle unit; Accessory shoe kit; Body cap; Accessory shoe cap; Handle shoe cap
