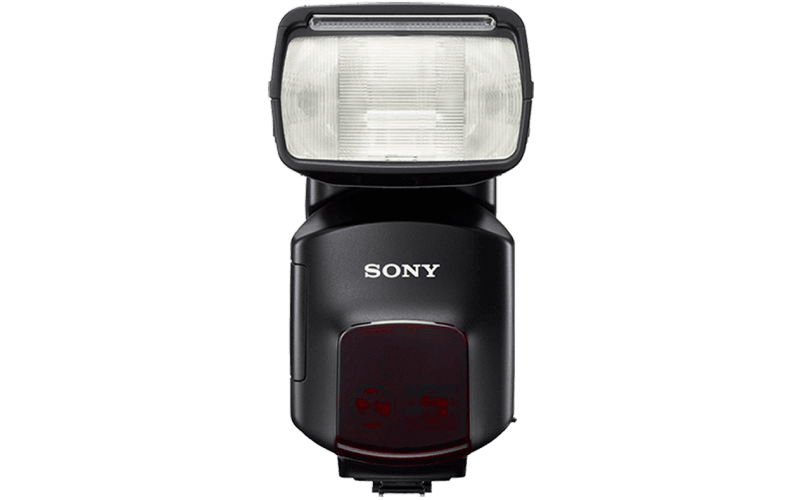

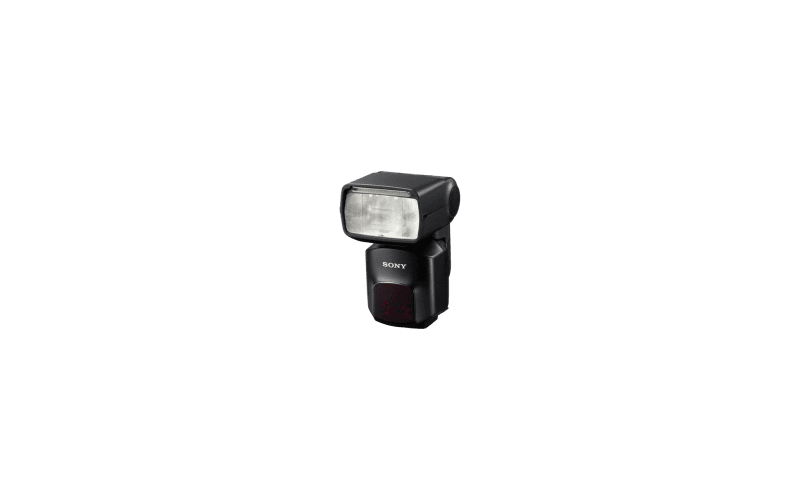

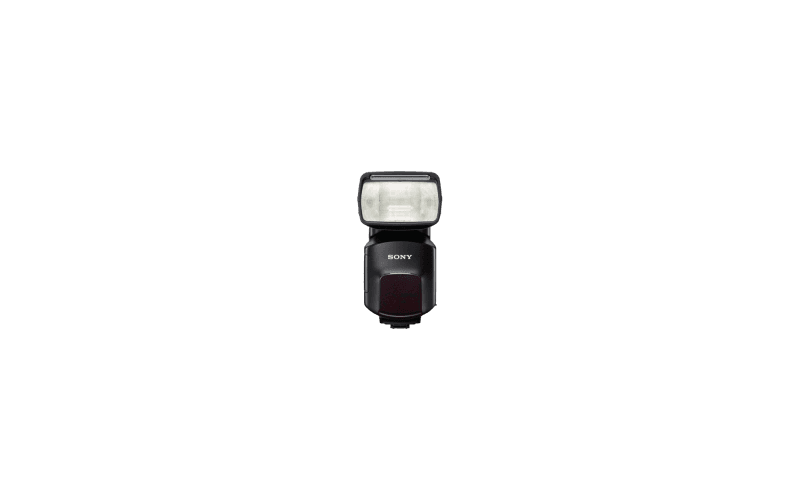

F60M External Flash For Multi Interface Shoe

High-power flash with built-in LED light for stills and movies

HVLF60M.CEA

This high-power high-end flash unit offers ample brightness with a guide number of 60 (GN60 ) and flexible shooting with Quick Shift Bounce. A built-in LED light enables bright movie shooting, and the dust and moisture resistant design lets you use it in a variety of outdoor situations.

  • GN60 flash rating
  • GN60 flash rating
  • Includes auto zoom control
  • Includes auto zoom control
  • Dust and moisture resistant
  • Dust and moisture resistant

RECOMMENDED ACCESSORIES

LCSPSC7B.SYH Primary Image

LCS-PSC7 Soft Carrying Case

LCSPSC7B.SYH

£139.00

Learn more
Buy Now

FEATURES

Quick Shift Bounce


Sony’s original flash head rotating mechanism allows the flash to pivot 90 degrees left and right in addition to up and down, so you can switch between landscape and portrait position compositions while the flash maintains the same bounce angle and light distribution. Because the LCD panel and buttons rotate together with the flash head, control is easy even for vertical composition.

Quick Shift Bounce


Sony’s original flash head rotating mechanism allows the flash to pivot 90 degrees left and right in addition to up and down, so you can switch between landscape and portrait position compositions while the flash maintains the same bounce angle and light distribution. Because the LCD panel and buttons rotate together with the flash head, control is easy even for vertical composition.

Quick Navi


Sony’s Quick Navi control interface provides easy, intuitive access to lighting parameters on a high-visibility dot matrix LCD panel. Everything you need to know is right there on the screen and accessible using a few buttons and control wheel, thereby minimizing the necessary operations required to adjust settings before you shoot.

Quick Navi


Sony’s Quick Navi control interface provides easy, intuitive access to lighting parameters on a high-visibility dot matrix LCD panel. Everything you need to know is right there on the screen and accessible using a few buttons and control wheel, thereby minimizing the necessary operations required to adjust settings before you shoot.

LED Light


Cool running and energy efficient, the LED light enables you to create natural lighting and shadows. Effective for both movies and stills, the LED light can be augmented by filters and diffusers for color temperature adjustment and visual effects with a high power of 1200 lux at 0.5 m, adjustable in 10 levels

LED Light


Cool running and energy efficient, the LED light enables you to create natural lighting and shadows. Effective for both movies and stills, the LED light can be augmented by filters and diffusers for color temperature adjustment and visual effects with a high power of 1200 lux at 0.5 m, adjustable in 10 levels

Dust and moisture resistant design


To ensure reliability even in challenging conditions such as outdoor wilderness situations, specially designed seals at joints around the body, LCD panel, mounting foot, and moving parts keep dust and moisture out. This is a particular bonus in outdoor usage where you have no control over various factors including wind and environmental dust.

Dust and moisture resistant design


To ensure reliability even in challenging conditions such as outdoor wilderness situations, specially designed seals at joints around the body, LCD panel, mounting foot, and moving parts keep dust and moisture out. This is a particular bonus in outdoor usage where you have no control over various factors including wind and environmental dust.

Multi Interface Shoe


This product is designed for use with Multi Interface Shoe flash.

Multi Interface Shoe


This product is designed for use with Multi Interface Shoe flash.

SPECIFICATIONS

Basic information
Dimensions (Approx.)
W 80mm X H 150mm X D 102mm (3 1 / 4inches X 6inches X 4 1 / 8inches)
Dimensions (Approx.)
W 80mm X H 150mm X D 102mm (3 1 / 4inches X 6inches X 4 1 / 8inches)
Size & Weight
Dimensions
Approx. 80 × 150 × 102 mm
Dimensions (W x H x D)
Approx. 80 × 150 × 102 mm
Dimensions
Approx. 80 × 150 × 102 mm
Dimensions (W x H x D)
Approx. 80 × 150 × 102 mm
Weight
Approx. 450 g (without batteries)
Weight
Approx. 450 g (without batteries)
Weight(Approx.)
450g (15.9 oz) (only main unit)
Weight(Approx.)
450g (15.9 oz) (only main unit)
Type
Type
Auto electronic flash (clip-on type) with pre-flash metering
Type
Auto electronic flash (clip-on type) with pre-flash metering
Overview
Key Features
Auto electronic flash (clip-on type) with pre-flash metering; for Multi Interface Shoe system, Auto-zoom*, High-speed sync.(HSS), Power level switching, Wireless flash, Bounce flash, Modelling flash, Multi-burst functions, LED light. *Automatically switched in a range of 24 - 105 mm focal lengths. Field of view at 15 mm focal length covered with wide panel attached. Note: When used with cameras with APS-C type image sensors, focal lengths are 35 mm full-frame format equivalent.
Key Features
Auto electronic flash (clip-on type) with pre-flash metering; for Multi Interface Shoe system, Auto-zoom*, High-speed sync.(HSS), Power level switching, Wireless flash, Bounce flash, Modelling flash, Multi-burst functions, LED light. *Automatically switched in a range of 24 - 105 mm focal lengths. Field of view at 15 mm focal length covered with wide panel attached. Note: When used with cameras with APS-C type image sensors, focal lengths are 35 mm full-frame format equivalent.
Shoe type
Multi Interface Shoe
Shoe type
Multi Interface Shoe
Flash Specifications
Power Level Switching
25 levels (1 / 1, 1 / 2, 1 / 4, 1 / 8, 1 / 16, 1 / 32, 1 / 64, 1 / 128, 1 / 256) 1 / 3 steps
Power Level Switching
25 levels (1 / 1, 1 / 2, 1 / 4, 1 / 8, 1 / 16, 1 / 32, 1 / 64, 1 / 128, 1 / 256) 1 / 3 steps
Cycle time/frequency (approx.) (based on Sony measurement), Alkaline battery
More than 120 times / 0.1 - 3.5 sec.
Flash Head(Light-emitting unit)
Maximum Guide number
60 (Flash coverage setting 105mm / STD flash distribution, ISO100·m)
Maximum Guide number
60 (Flash coverage setting 105mm / STD flash distribution, ISO100·m)
Cycle time/frequency (approx.) (based on Sony measurement), Alkaline battery
More than 120 times / 0.1 - 3.5 sec.
Flash Coverage
AUTO / MANUAL(24mm-105mm)Angle of view of at 15mm focal length is also covered with the wide panel
Cycle time/frequency (approx.) (based on Sony measurement), Ni-MH battery
More than 200 times / 0.1 - 2.6 sec.
Flash Coverage
AUTO / MANUAL(24mm-105mm)Angle of view of at 15mm focal length is also covered with the wide panel
Cycle time/frequency (approx.) (based on Sony measurement), Ni-MH battery
More than 200 times / 0.1 - 2.6 sec.
Cycle time/frequency (approx.) (based on Sony measurement), Lithium battery
Not compatible
Flash mode
TTL / MANUAL / MULTI
Cycle time/frequency (approx.) (based on Sony measurement), Lithium battery
Not compatible
Flash mode
TTL / MANUAL / MULTI
Flash Duration (Approx.)
Within 4.5ms(1 / 1 MANUAL)
Flash Duration (Approx.)
Within 4.5ms(1 / 1 MANUAL)
Flash Coverage
Covers the field of view at focal lengths 24 - 105 mm. Automatically switched at changes in focal length. Manual switching possible (at 24 / 28 / 35 / 50 / 70 / 105 mm focal length). Covers the field of view at 15 mm focal length with wide panel attached.
Flash Coverage
Covers the field of view at focal lengths 24 - 105 mm. Automatically switched at changes in focal length. Manual switching possible (at 24 / 28 / 35 / 50 / 70 / 105 mm focal length). Covers the field of view at 15 mm focal length with wide panel attached.
Quick Shift Bounce flash
Available
Quick Shift Bounce flash
Available
Color Temperature (Approx.)
5500K
Bounce Flash
Available. Click position: up (30° / 45° / 60° / 75° / 90° / 120° / 150°), down (10°), right (30° / 45° / 60° / 90°), left (30° / 45° / 60° / 90°)
Color Temperature (Approx.)
5500K
Bounce Flash
Available. Click position: up (30° / 45° / 60° / 75° / 90° / 120° / 150°), down (10°), right (30° / 45° / 60° / 90°), left (30° / 45° / 60° / 90°)
Continuous Flash
10 flashes / second, total 40 flashes (1 / 32 power level, with Ni-MH battery)
Frequency (Approx.)
0.1-3.5 seconds(Alkaline battery) / 0.1-2.6 seconds(Ni-MH battery)
Continuous Flash
10 flashes / second, total 40 flashes (1 / 32 power level, with Ni-MH battery)
Frequency (Approx.)
0.1-3.5 seconds(Alkaline battery) / 0.1-2.6 seconds(Ni-MH battery)
AF Illuminator Range
Approx. 0.5 - 10 m (based on Sony measurement)
AF Illuminator Range
Approx. 0.5 - 10 m (based on Sony measurement)
Repetition (Approx.)
More than 120 times(Alkaline battery) / More than 200 times(Ni-MH battery)
Repetition (Approx.)
More than 120 times(Alkaline battery) / More than 200 times(Ni-MH battery)
Flash Control
Pre-flash control (P-TTL / ADI), manual flash control selectable
Continuous flash performance
40 flashes at 10 flashes per second
Continuous flash performance
40 flashes at 10 flashes per second
Flash Control
Pre-flash control (P-TTL / ADI), manual flash control selectable
Bounce flash
Yes
Multiple Flash
Available when used in the M-mode of the camera (Frequency: 1 - 100Hz, No. of burst: 2 - 100 times)
Multiple Flash
Available when used in the M-mode of the camera (Frequency: 1 - 100Hz, No. of burst: 2 - 100 times)
Bounce flash
Yes
Bounce angle
Up 150deg (0deg / 30deg / 45deg / 60deg / 75deg / 90deg / 120deg / 150deg) Down 10deg, Left and right 90deg (0deg / 30deg / 45deg / 60deg / 90deg)
Wireless Flash
Available as wireless flash controller / off-camera flash
Bounce angle
Up 150deg (0deg / 30deg / 45deg / 60deg / 75deg / 90deg / 120deg / 150deg) Down 10deg, Left and right 90deg (0deg / 30deg / 45deg / 60deg / 90deg)
Wireless Flash
Available as wireless flash controller / off-camera flash
Wireless flash ratio control
3 flash-unit groups: A (attached to the camera), B and C. Flash ratio control: A(1-16), B(1-16), C(1-16)
Test flash
Yes
Wireless flash ratio control
3 flash-unit groups: A (attached to the camera), B and C. Flash ratio control: A(1-16), B(1-16), C(1-16)
Test flash
Yes
Flash control
Flash control using pre-flash (P-TTL / ADI)
External Off-camera Terminal
Equipped
Flash control
Flash control using pre-flash (P-TTL / ADI)
External Off-camera Terminal
Equipped
High-Speed Sync.
Extended flash duration allows synchronization at all shutter speeds on cameras that have a Multi Interface Shoe, Auto-lock Accessory Shoe.
Flash compensation
Yes
High-Speed Sync.
Extended flash duration allows synchronization at all shutter speeds on cameras that have a Multi Interface Shoe, Auto-lock Accessory Shoe.
Flash compensation
Yes
Power Level switching
25 levels(1 / 1-1 / 256) 1 / 3 steps
Power Level switching
25 levels(1 / 1-1 / 256) 1 / 3 steps
Test Flash
Available with test flash button
Test Flash
Available with test flash button
High-speed sync(HSS)
Yes
Modeling Flash
Available with test flash button (Two types: 2 Hz / 3 times, 40 Hz / 4 sec.)
Modeling Flash
Available with test flash button (Two types: 2 Hz / 3 times, 40 Hz / 4 sec.)
High-speed sync(HSS)
Yes
Auto white balance
Available (except the a100)
Auto white balance
Available (except the a100)
Modeling flash
Yes
Modeling flash
Yes
Auto Zoom Control Optimized for Image Sensor Size
Available (except the a100)
Auto Zoom Control Optimized for Image Sensor Size
Available (except the a100)
Built-in wide panel
Yes(15mm)
Built-in wide panel
Yes(15mm)
Flash Compensation
Available (not only body operation, but also flush operation)
Flash Compensation
Available (not only body operation, but also flush operation)
Built-in bounce sheet
Yes
Built-in bounce sheet
Yes
Power Source
5 = Remove from site
Power Source
4x AA-size batteries (Alkaline / Ni-MH) / External Battery Adapter FA-EB1AM (6x AA-size batteries)
Dust and Moisture Resistant
Designed to be dust- and moisture- resistant
Dust and Moisture Resistant
Designed to be dust- and moisture- resistant
AF illuminator
AF illuminator
Yes
AF illuminator
Yes
Operating Range (Approx.)
0.5-10m
Operating Range (Approx.)
0.5-10m
LED light
Center luminance Intensity
Approx. 1200 lx (0.5 m) / 300 lx (1 m) (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light), Approx. 600 lx (0.5 m) / 150 lx (1 m) (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light)
Center luminance Intensity
Approx. 1200 lx (0.5 m) / 300 lx (1 m) (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light), Approx. 600 lx (0.5 m) / 150 lx (1 m) (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light)
Radio controlled wireless function
Radio Control Wireless Function
-
Lighting distance
Approx. 2 m (ISO 3200 / F5.6 Movie mode, w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light)
Lighting distance
Approx. 2 m (ISO 3200 / F5.6 Movie mode, w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light)
Radio Control Wireless Function
-
Frequencies
-
Continuous lighting time
Approx. 1 hour (with 4x AA-size Sony Alkaline batteries)
Continuous lighting time
Approx. 1 hour (with 4x AA-size Sony Alkaline batteries)
Frequencies
-
Channels
-
Colour temprature
Approx. 5500 K (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light), Approx. 3200 K (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light)
Colour temprature
Approx. 5500 K (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light), Approx. 3200 K (w / o Built-in Diffuser for LED Light, w / o Color Conversion Filter for LED Light)
Channels
-
Communication Distance (Approx.)
-
Communication Distance (Approx.)
-
Groups
-
Groups
-
Maximum Flash units
-
Maximum Flash units
-
Lighting ratio control
-
Lighting ratio control
-
Optical control wireless function
Optical Controlled Wireless Flash
Yes(controller / remote)
Optical Controlled Wireless Flash
Yes(controller / remote)
Channels
4 Channels
Channels
4 Channels
Communication Distance (Approx.)
5m
Communication Distance (Approx.)
5m
Groups
3 groups
Groups
3 groups
Lighting ratio control
3 groups(TTL)
Lighting ratio control
3 groups(TTL)
LED light function
Center Luminance Intensity (Approx.)
1200 lx(0.5m) / 300 lx(1m)
Center Luminance Intensity (Approx.)
1200 lx(0.5m) / 300 lx(1m)
Lighting Distance (Approx.)
2 m (when recording movies, set to ISO 3200 & F5.6)
Lighting Distance (Approx.)
2 m (when recording movies, set to ISO 3200 & F5.6)
Focal length supported
35mm (35mm-format angle of view)
Focal length supported
35mm (35mm-format angle of view)
Continuous Lighting Time (Approx.)
1hour (with Sony AA-size alkaline battery)
Continuous Lighting Time (Approx.)
1hour (with Sony AA-size alkaline battery)
Color Temperature (Approx.)
5500K
Color Temperature (Approx.)
5500K
Power Level switching
15 steps
Power Level switching
15 steps
Other functions
Auto zoom control optimized for image sensor size
Yes
Auto zoom control optimized for image sensor size
Yes
Flash distribution setting
-
Flash distribution setting
-
Auto WB Adjustment
Yes
Auto WB Adjustment
Yes
Custom key settings
-
Custom key settings
-
Memory settings
Yes
Memory settings
Yes
Remote release
-
Remote release
-
Display
LCD panel
Yes(Dot matrix)
LCD panel
Yes(Dot matrix)
Charge progress indicator
-
Charge progress indicator
-
External connectors
Sync terminal
-
Sync terminal
-
Multi/Micro USB terminal
-
Multi/Micro USB terminal
-
Power source
Power Source
Four AA-size alkaline or Ni-MH batteries
Power Source
Four AA-size alkaline or Ni-MH batteries
External Battery Adaptor
FA-EB1AM
External Battery Adaptor
FA-EB1AM
Other Features
Dust and moisture resistant design
Yes
Dust and moisture resistant design
Yes
